Engrave around mugs, tumblers and other curved objects with a compatible xTool laser. Choose the full RA3, RA3 Lite for M2, or a separate chuck or roller extension kit for your existing setup.
In stock
xTool · Laser accessories

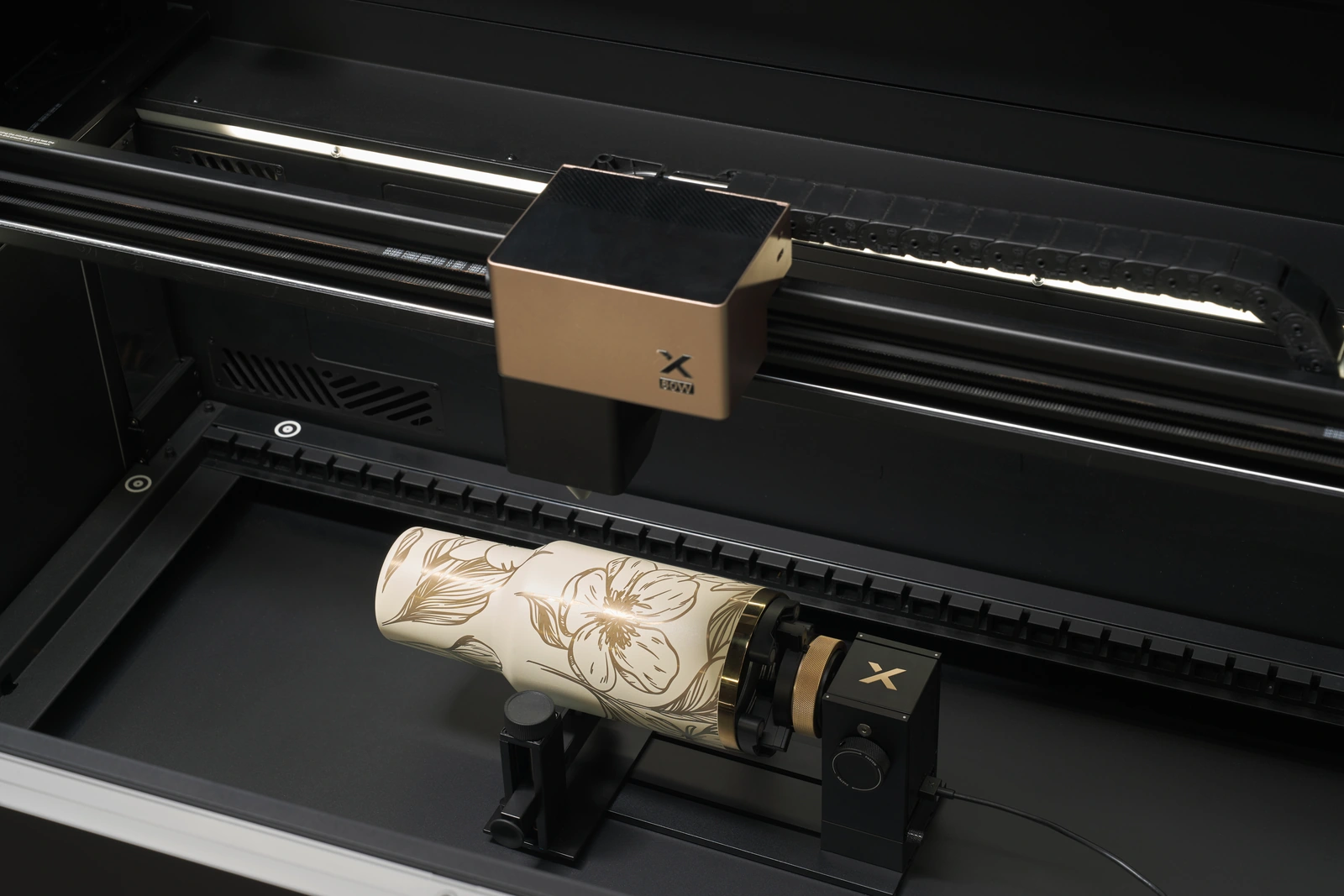

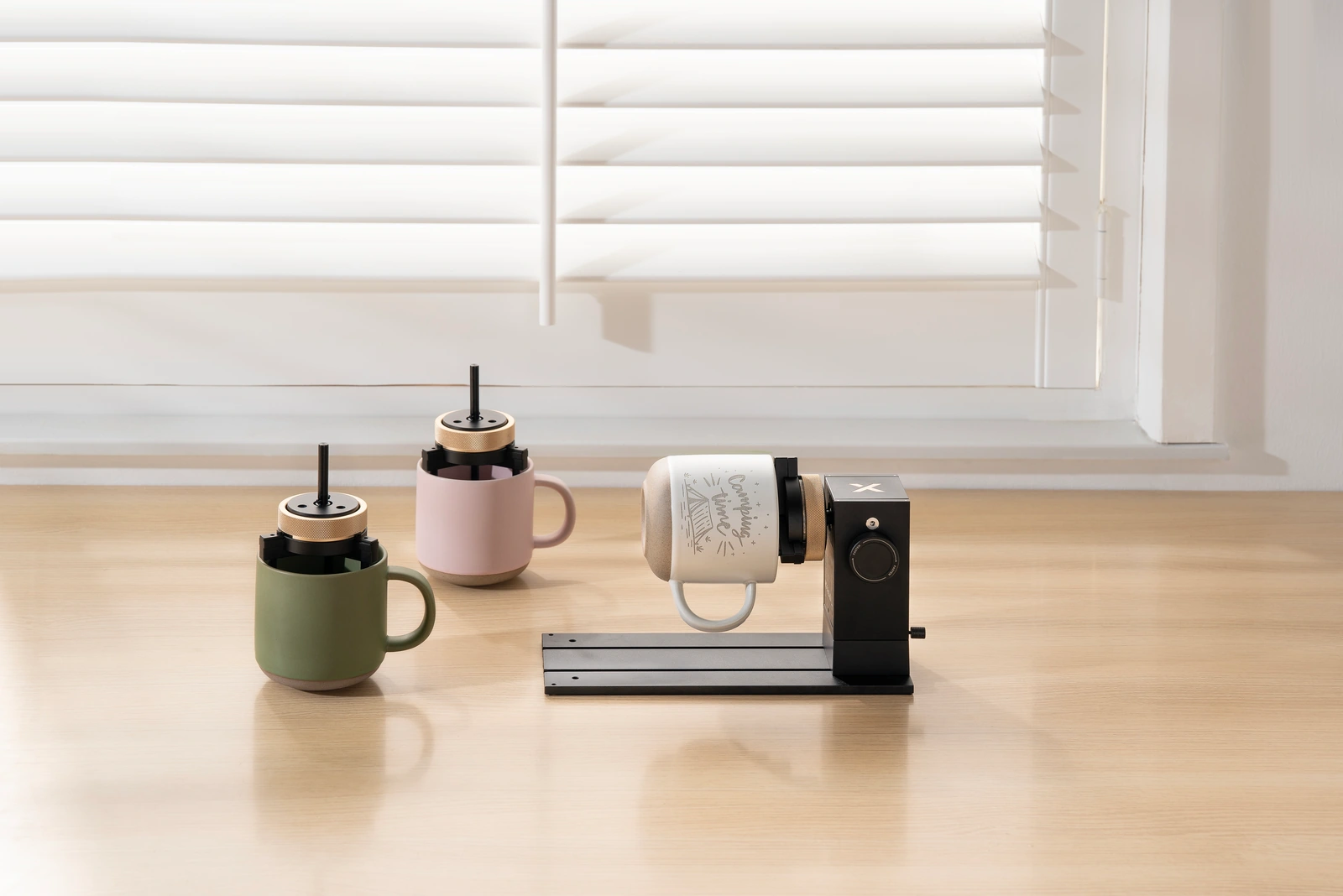

A rotary attachment turns the workpiece as the laser engraves, opening up projects beyond flat sheets. The full RA3 combines roller, chuck, sphere and ring configurations. Its magnetic MagSwap connection helps you change the setup, while an extra Chuck Kit lets you prepare the next object before swapping it onto the drive. Use the supported material settings for your laser and check the object’s diameter, shape and clearance before starting.
Choose the attachment for your machine and workflow. RA3 Lite is the M2-specific chuck setup; it does not support the Roller Extension Kit. The standard RA3 provides roller and chuck hardware, while the separate extension adds roller capacity for batch work. Automatic modelling and focusing depend on the laser: P-series features do not carry over to F-series machines. The scene photos show application examples; laser machines and workpieces are sold separately.
| Brand | xTool |
|---|---|
| Configuration | RA3 |
| Chuck Kit | Additional interchangeable chuck; rotary drive not included |
| Extension Kit | Additional roller assembly for the full RA3; not supported by RA3 Lite |
| RA3 Lite machine | xTool M2 |
| RA3 configurations | Roller, chuck, sphere and ring |
| RA3 ring adjustment | Up to 26° tilt for inner-ring positioning |
| Attachment connection | MagSwap magnetic quick-change system |
| RA3 Lite object diameter | 0–100 mm, subject to jaw setup and M2 clearance |
| RA3 roller diameter ranges | S: 5–45 mm; M: 40–70 mm; L: 60–100 mm |
| RA3 maximum object diameter | Up to 130 mm with the appropriate jaw and height configuration; laser clearance also applies |
| Product family | Laser accessories |
RA3
RA3 and RA3 Lite are the rotary packages. Chuck Kit and Extension Kit are add-ons for an existing setup; neither includes the rotary drive or a laser.
No. RA3 Lite is designed for the M2 and does not support the Roller Extension Kit. Its inner-ring engraving is also limited by the M2’s horizontal laser arrangement.
No. These functions depend on the connected machine and software. The P-series automatic rotary features are not available on F-series machines.
