RA2 Pro rotary accessory

Choose the RA2 Pro rotary accessory or the separate accessory kit for an existing rotary. The kit adds adjustable positioning and alignment; it does not include the rotary attachment.

€284.35Includes 21% VAT

Configuration RA2 Pro

RA2 ProAccessory kit

In stock

SKU: XT-P5010279
What’s included: RA2 roller and support modules, jaw chuck, tail module, jaws, connection cable, mounting hardware, tools and tape measure.
Dimensions: 321 × 138 × 105 mm
Net weight: 1.96 kg

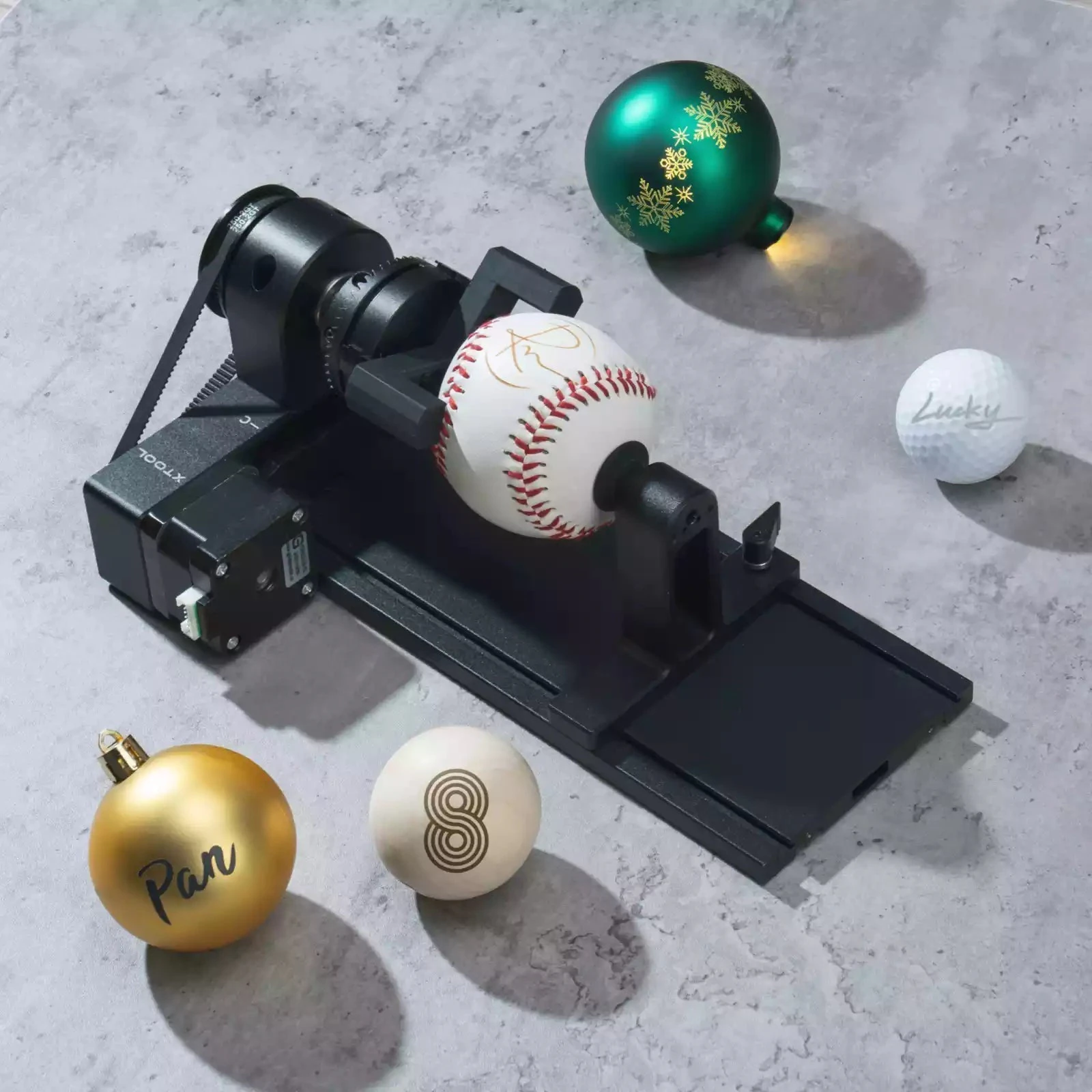

RA2 Pro holding a baseball, surrounded by engraved baubles, billiard ball and golf ball. — RA2 Pro holding a round object, alongside engraving examples.

xTool · Laser accessories

Take a design around the object.

RA2 Pro turns a suitable object during laser engraving, taking a design beyond a flat surface. Its roller and chuck assemblies support different ways of holding cylindrical objects, with configurations for spheres and rings. Choose the fixture around the object’s shape and the engraving you want to make.

Check the object and the machine together

The rotary must fit the complete laser setup, including the connection cable, working height and any required riser. Check these together before choosing a blank. The accessory’s diameter ranges are mechanical limits, not a guarantee that every object will fit inside every compatible laser.

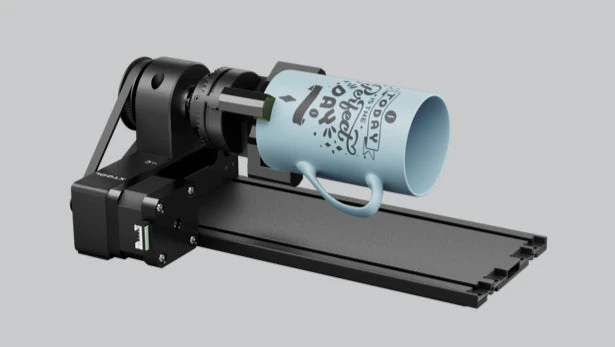

RA2 Pro in chuck configuration holding a decorated blue mug. — A rotary setup for handled objects

Applications

Personalise products

Project ideas

A wraparound design on a suitable cylindrical blank
A project that needs a chuck-based setup
A rotary alignment experiment before a final engraving

Getting started

Confirm the machine, riser and connection requirements.
Select the fixture suitable for the object.
Set up alignment using the manufacturer’s instructions.
Test the position and use approved material settings.

Suitable for: Makers
Experience: Workshop

Technical specifications

RA2 Pro rotary accessory · RA2 Pro
Brand	xTool
Configuration	RA2 Pro
RA2 Pro · Function	Rotary positioning for a compatible laser
RA2 Pro · Dimensions	321 × 138 × 105 mm
Accessory kit · Package	Accessory kit only
RA2 Pro · Chuck diameter	50 mm
RA2 Pro · Configurations	Roller, chuck, sphere and ring
RA2 Pro · Chuck gear ratio	4:1
Accessory kit · Compatibility	xTool RA2 Pro
Accessory kit · Adjustment range	26° at the L-shaped module
Accessory kit · Positioning aids	Laser positioning module and two limit pieces
RA2 Pro · Object diameter — ring	11–70 mm
RA2 Pro · Object diameter — chuck	0–100 mm
RA2 Pro · Object diameter — sphere	25–100 mm
RA2 Pro · Object diameter — rollers	3–198 mm with suitable risers; actual limit depends on the laser setup
Product family	Laser accessories

Included & setup

What’s included

RA2 Pro

RA2 roller assembly and support module
Jaw chuck and tail module
Single-step and double-step jaws, studs and mounting screws
Connection cable appropriate to the purchased kit
Mini level, hex keys and 1.5 m tape measure
User manual

Requirements & compatibility

Follow model-specific installation instructions.
This accessory does not replace laser extraction or operating precautions.
Manufacturer lists P2S and S1 among compatible machines.
Verify the required riser, connector and working clearance for your model.

Product questions

Does the RA2 Pro engrave on its own?

No. It rotates the object for a compatible laser machine, which performs the engraving.

Will every listed object size fit my laser?

No. The laser’s enclosure, working height and riser configuration may impose a smaller limit than the rotary attachment itself.

Is the connection cable the same for every machine?

No. xTool notes that the supplied cable depends on the kit. Confirm the connection for your laser model before ordering.
