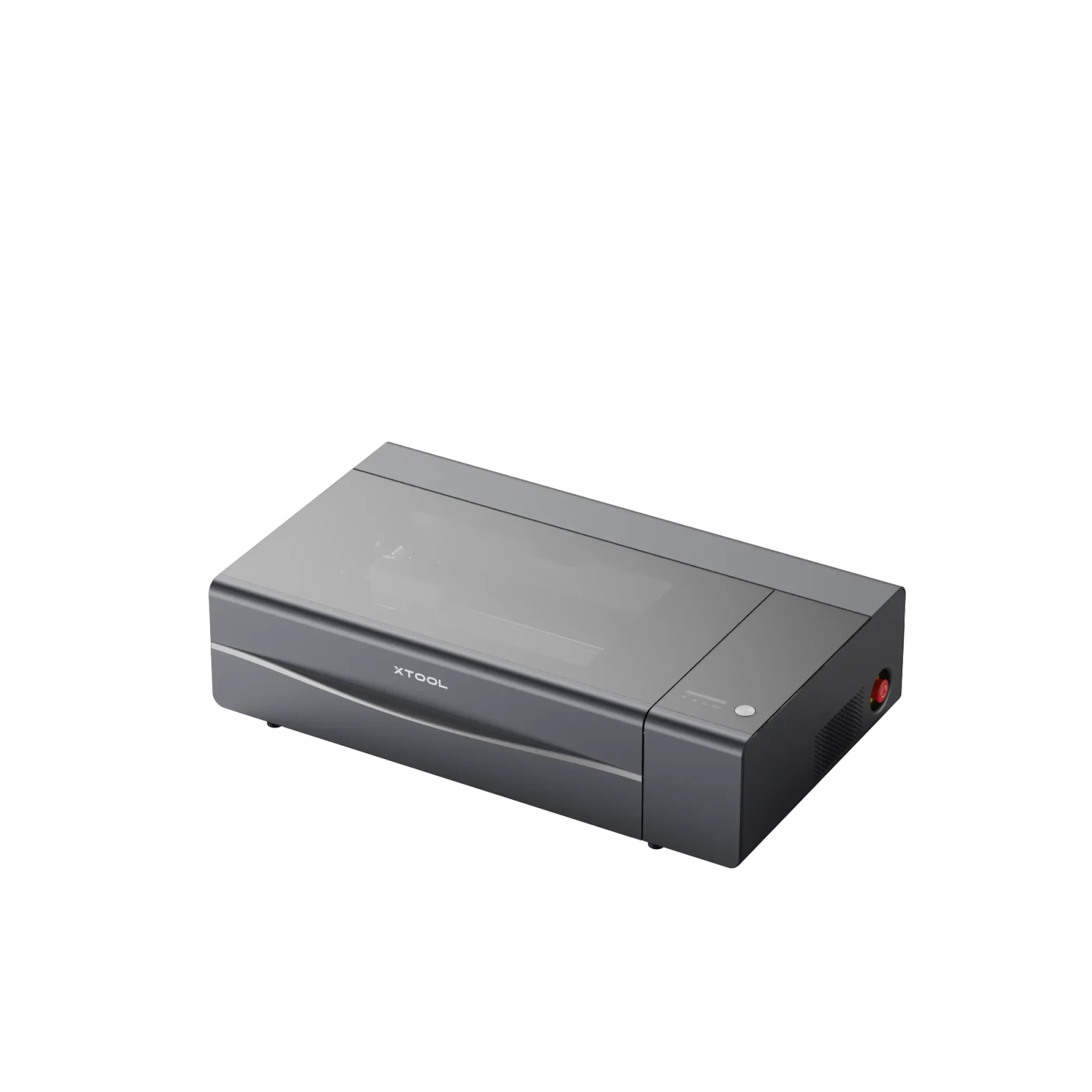

P2S CO₂ laser

Cut and engrave wood, acrylic and other approved materials with an enclosed 55 W CO₂ laser and camera-assisted positioning.

~~€3,023.79~~€2,721.41Includes 21% VAT

Configuration Class I · Starter

Class I · StarterClass IV · StarterClass IV · Full kit

Available to order from manufacturer

Estimated delivery: Fri 6 Nov

SKU: XT-P2S-P1030632
What’s included: P2S Class I laser cutter, exhaust pipe, cables, antifreeze, tools and sample materials.
Dimensions: 1000 × 639 × 268 mm (laser, excluding riser base)
Net weight: 45 kg (laser)

Maker holding a large tree-shaped wooden project in a workshop. — Wood projects for the workshop

xTool · Enclosed laser cutters

Turn sheet materials into finished objects.

The P2S combines a 55 W CO₂ laser with an enclosed workspace and two cameras for positioning designs. Its working area supports projects such as layered signs, fitted organisers and personalised objects. Clear acrylic is an important material difference from a diode laser: the P2S can cut it as well as suitable coloured acrylic and wood.

Plan the process around the material

Use the camera view to arrange a design, then test the settings on the actual material before producing the finished piece. Rotary and larger-object projects need the appropriate accessories and clearance. Plan extraction, cooling-system setup and supervised operation from the start; the enclosure does not remove these requirements. LightBurn is supported for basic operation, but its camera and autofocus support differs from xTool’s software.

Hands assembling small jewellery and accessory pieces at a bright workbench. — Small pieces, finished by hand

Applications

Make signs
Personalise products

Project ideas

A fitted plywood organiser developed from a measured drawing
Layered signage with a considered finish
Personalised details on approved laser materials

Getting started

Confirm material composition and manufacturer guidance.
Prepare ventilation, extraction and the supervised workspace.
Set up the design and make a small settings test.
Inspect the result before continuing the final project.

Suitable for: Makers
Experience: Workshop

Technical specifications

P2S CO₂ laser · Class I · Starter
Brand	xTool
Configuration	Class I · Starter
Software	xTool software; LightBurn with feature limitations
Enclosure	Enclosed
Technology	CO₂ laser
Positioning	Panoramic and close-view cameras
Connectivity	USB and Wi-Fi
Working area	600 × 305 mm
Optical power	55 W
Laser classification	Class IV or Class I, according to the selected variant
Maximum engraving speed	600 mm/s; actual settings depend on the material
Product family	Enclosed laser cutters
Applications	Wood, Acrylic

Included & setup

What’s included

Class I · Starter

P2S Class I laser cutter in black, operating key, power cable and USB-C cable
Smoke exhaust pipe components
Antifreeze and filling funnel
Basswood and transparent acrylic sample materials
Material clamp, screwdriver, hex key and spare screws
Quick-start, self-check and safety guides

Requirements & compatibility

A suitable fume extraction arrangement is required.
Use only materials approved by the manufacturer; never leave a running laser unattended.
Operator training and fire precautions must be reviewed before use.
Use only materials approved for the P2S; composition and coatings matter.
RA2 Pro rotary work requires the compatible connection and sufficient working clearance; a riser may be required.
Use the current xTool software for your computer, or review the P2S-specific LightBurn limitations.

Product questions

Can the P2S cut clear acrylic?

Yes. xTool lists clear and coloured acrylic as supported cutting materials. Use settings appropriate to the exact sheet and thickness.

Can it cut metal or glass?

No. xTool lists glass and certain coated or treated metals for engraving, not cutting. Check the process required for the specific surface.

Do I need extraction?

Yes. Connect the exhaust system as instructed and use a suitable extraction or filtration arrangement. Supervise the machine throughout operation.

Can I use LightBurn?

Yes, but xTool states that camera and autofocus functions are not supported in LightBurn for the P2S. Follow its guidance for framing and setting material thickness.
