F2 dual-laser

Personalise small objects with a portable 15 W diode and 5 W infrared laser. Camera-assisted positioning supports detailed work on approved wood, metal and other materials in a controlled professional workspace.

€1,511.29Includes 21% VAT

Configuration Standard

StandardFull kit

Available to order from manufacturer

Estimated delivery: Fri 6 Nov

SKU: XT-F2-P1010151
What’s included: F2 engraver, exhaust pipe, slatted panel, positioning piece, RA3 support block, cables, tools and sample materials. Rotary attachment sold separately.
Dimensions: 175 × 237 × 334 mm (engraver; W × D × H)
Net weight: 4.6 kg (engraver)

Maker inspecting a decorated metal blade beside an xTool F2 and personalised objects in a workshop. — Personal details on finished objects

xTool · Portable laser engravers

Small objects. Personal details.

The F2 combines two laser sources in a compact machine with a carrying handle. Use the diode laser for suitable wood, leather and dark opaque acrylic, or the infrared laser for marking metals and selected plastics. A built-in camera helps position a name, illustration or fine pattern on the workpiece. The small working area suits tags, jewellery, labels and other individual pieces, with the laser and settings chosen for each material.

Build a repeatable engraving workflow

Prepare the design in xTool Studio, position the object and refresh the camera image before checking focus and running a material test. For repeat work or longer pieces, the optional Slide Extension increases the available area; a compatible rotary attachment supports round objects. Both are separate accessories. Plan a controlled workspace, extraction and trained operation before getting started: the orange protective cover does not change the F2's Class 4 classification.

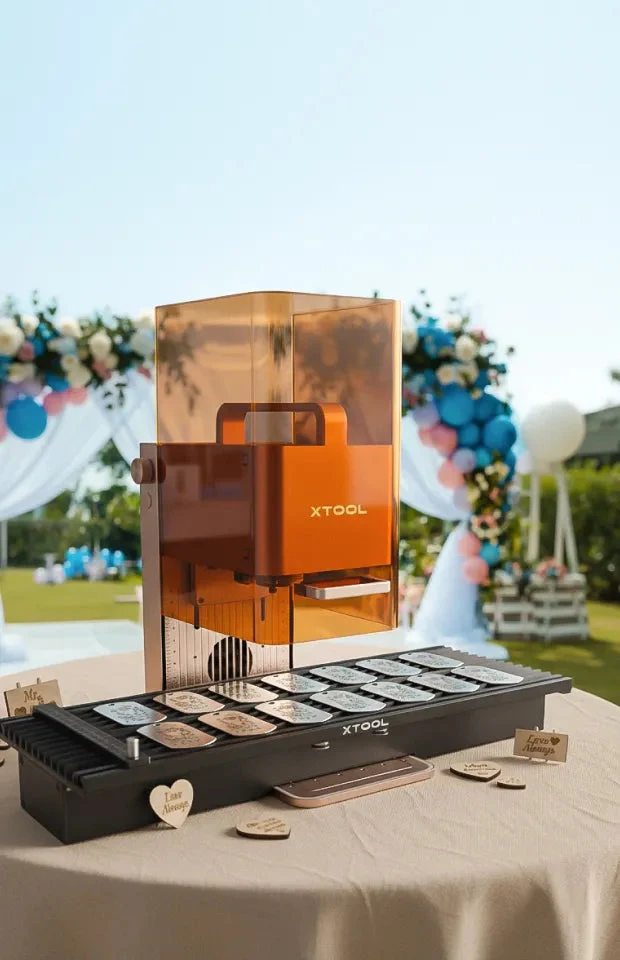

xTool F2 with an optional Slide Extension holding a row of engraved tags. — Repeated parts with the optional Slide Extension · sold separately

Applications

Personalise products
Make signs

Project ideas

Personalised metal tags and small nameplates
Engraved details on approved wooden blanks
Repeated designs on small parts with a suitable positioning setup

Getting started

Prepare the controlled laser workspace and connect extraction.
Choose a verified material and the appropriate laser source.
Position the design, refresh the camera image and check focus.
Test on a sample before supervising the final engraving.

Suitable for: Makers
Experience: Workshop

Technical specifications

F2 dual-laser · Standard
Brand	xTool
Configuration	Standard
Focus	Automatic and manual
Camera	50 MP; refresh the captured image after moving the material
Software	xTool Studio for Windows and macOS; LightBurn is not supported
Dimensions	175 × 237 × 334 mm (W × D × H)
Technology	Blue-light diode and infrared lasers
Power input	25 V DC, 6 A, 150 W
Connectivity	Wi-Fi and USB; network connection by IP supported
Working area	115 × 115 mm; 115 × 400 mm with optional Slide Extension
Optical power	15 W diode + 5 W infrared; average output power
Laser wavelength	Diode: 445 ± 15 nm · Infrared: 1064 ± 5 nm
Laser classification	Class 4; professional use with trained operators
Maximum working speed	6,000 mm/s; actual settings depend on the material and process
Supported file formats	SVG, DXF, JPG, JPEG, PNG and BMP; convert AI files to SVG
Maximum cutting thickness	Manufacturer test limits: 15 mm basswood or 12 mm suitable acrylic with multiple passes; results vary with material and settings
Maximum processing height	120 mm; available clearance is reduced by rotary attachments
Product family	Portable laser engravers
Applications	Wood, Metal, Leather, Acrylic

Included & setup

What’s included

Standard

F2 laser engraver with 15 W diode and 5 W infrared lasers
Exhaust pipe, slatted panel and L-shaped positioning piece
RA3 support block; rotary attachment sold separately
Power adapter, power cable and USB cable
Pre-installed operating key, screwdriver, grease and lint-free cloth
Sample material pack, quick-start guide and safety instructions

Requirements & compatibility

Class 4: trained operators and a Laser Safety Officer are required.
Provide extraction, protective eyewear and a controlled workspace; supervise every job.
Follow the EU/UK safety guide for fire precautions, enclosure and interlock use.
Use approved materials; no PVC, vinyl or unknown plastics. Metal cutting is unsupported.
Use xTool Studio on Windows or macOS; LightBurn is not supported.
Check accessory clearance for rotary and extension-table work. The Full kit includes an RA3 rotary attachment and extension table; the Standard package does not.

Product questions

What does each laser do?

The diode laser is for cutting or engraving suitable non-metals. The infrared source is for marking or engraving metals and selected plastics. Check the exact material and test the settings first.

Is the camera preview live?

It is a captured image. Refresh the camera preview whenever you move the material before checking the design placement.

Can I use LightBurn?

No. The F2 uses xTool Studio; xTool currently lists LightBurn as unsupported.

Is it suitable for an open classroom or public demonstration?

The EU/UK safety guide specifies professional use in a controlled area. It is not intended for use around children or untrained bystanders; the protective cover does not make it a Class 1 machine.
