Build and rebuild ten robot forms with reusable aluminium parts, motors and sensors. Explore mechanical design, visual coding and Arduino programming with the MegaPi controller.
In stock
Makeblock · Coding robots

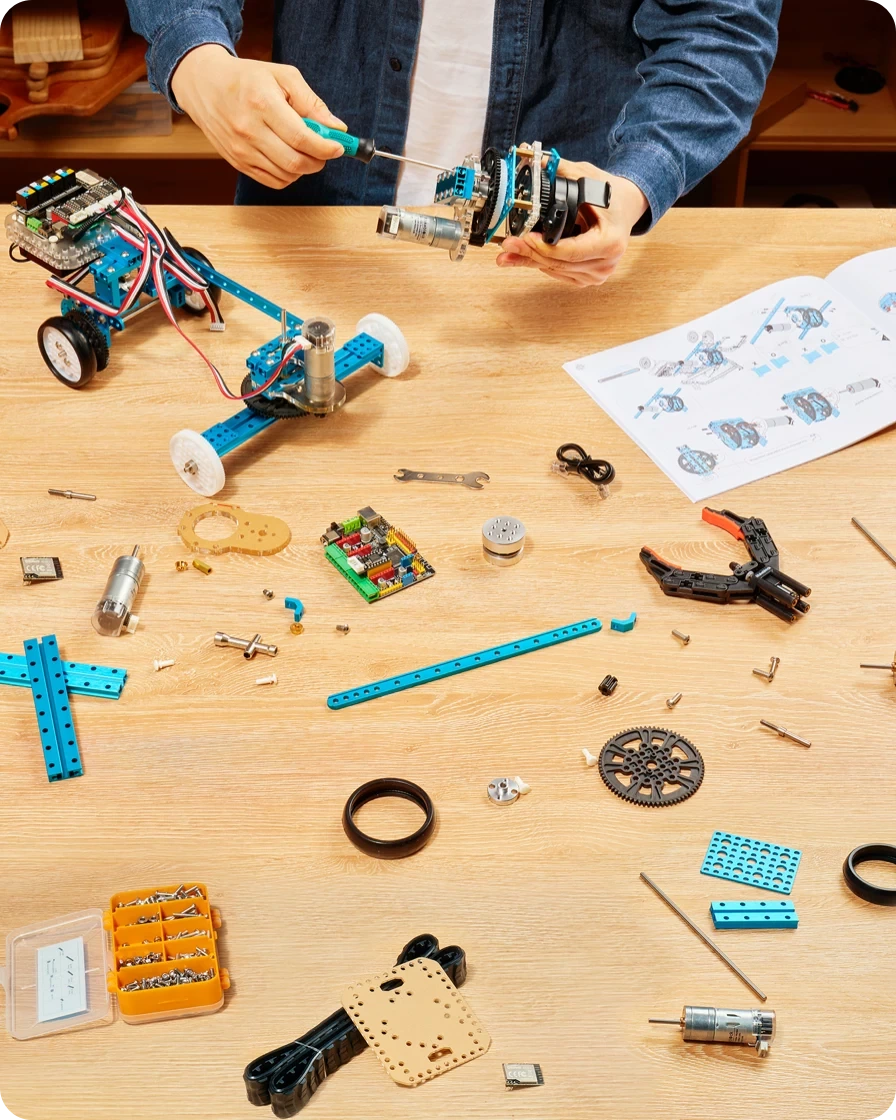

mBot Ultimate combines mechanical construction and programming in a kit that can be rebuilt into ten different robot forms. Assemble a tracked arm, explore a balancing mechanism or change the way a robot moves and grips. Reusable aluminium beams, motors, gears and sensors make each build an opportunity to see how the structure changes the result.
The MegaPi controller connects the physical build to visual programs in mBlock and to Arduino C/C++ for later work. Begin with a guided model, test a short movement sequence and add sensor-based decisions as confidence grows. The kit is suited to longer projects and shared problem-solving, with parts that can be reused for the next idea. Supply batteries separately; temporary manufacturer battery gifts are not part of this kit.
| Brand | Makeblock |
|---|---|
| Configuration | mBot Ultimate |
| Parts | 160+ electronic and mechanical parts |
| Power | Six AA batteries or compatible rechargeable LiPo pack · not included |
| Motors | Three encoder motors · two 185 rpm and one 86 rpm |
| Gripper | Makeblock robot gripper included |
| Sensors | Ultrasonic, line follower, accelerometer/gyroscope and shutter module |
| Processor | ATmega2560-16AU · 16 MHz |
| Controller | MegaPi |
| Programming | Visual blocks in mBlock; Arduino C/C++ |
| Connectivity | USB and Bluetooth; additional hardware for 2.4 GHz connections |
| Construction | Aluminium beams and brackets · assembly required |
| Recommended age | 12+ |
| Guided robot forms | 10 |
| Controller expansion | 11 motor/servo ports and five sensor ports |
| Product family | Coding robots |
| Applications | Code |
mBot Ultimate
The same kit can be rebuilt into ten guided forms. It does not contain ten complete robots for simultaneous use.
The kit includes a six-AA battery holder. Batteries, rechargeable packs and a remote controller are not included.
Start with visual blocks in mBlock, then use Arduino C/C++ for text-based programs. Follow the guide for your controller and connection.
No. Mechanical assembly is part of the activity. Choose one of the guided forms and build it using the supplied parts and tools.
