Capture the shape and colour of physical objects with a handheld infrared 3D scanner, then prepare the resulting mesh for your next design.
In stock
Creality · 3D scanners

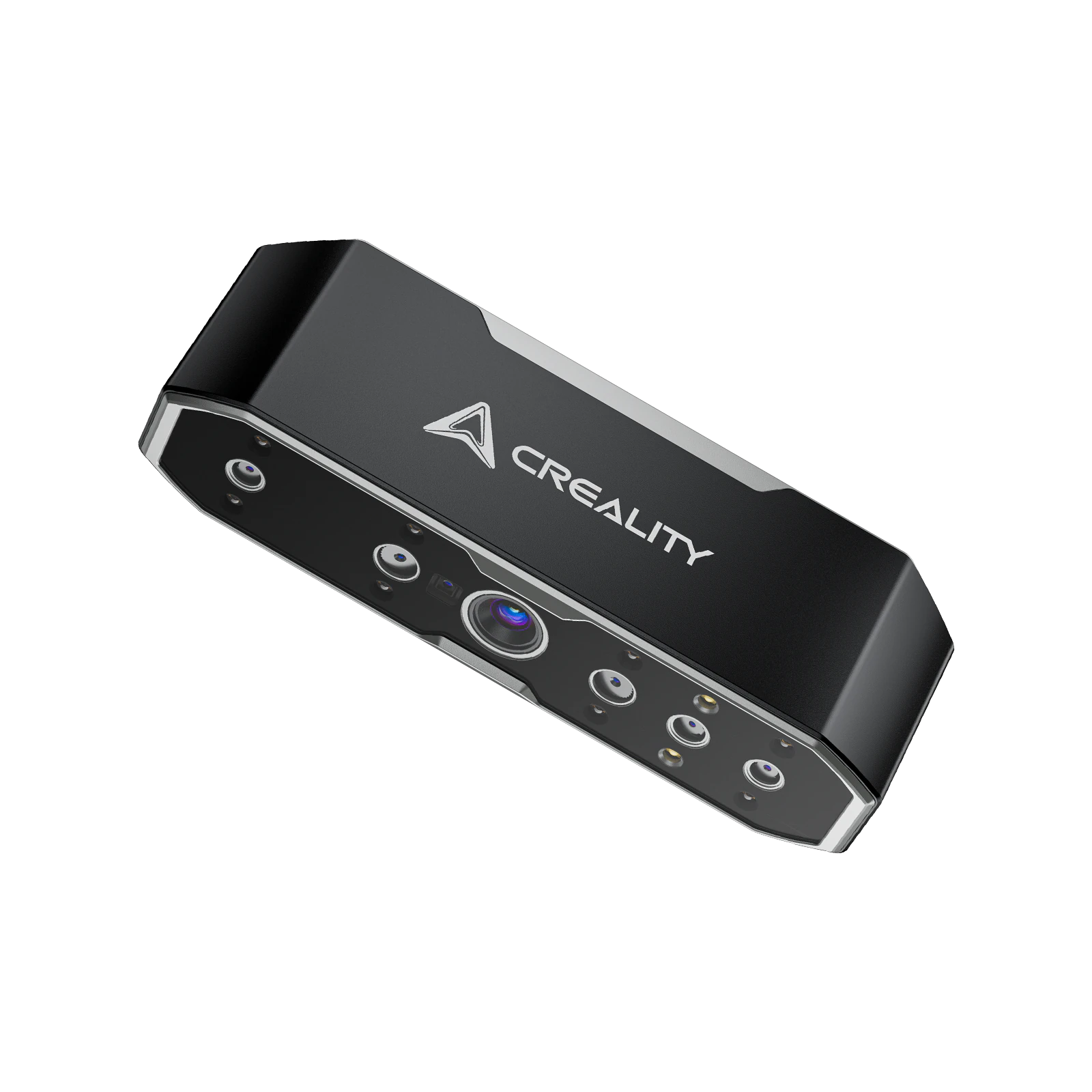

CR-Scan Otter uses infrared structured light and two pairs of stereo lenses to capture objects at different scales. The scanning process combines views into a digital surface model, with colour capture available for visual reference. It can provide a starting point for studying an existing form, developing a new design around it or preparing an object for digital presentation.
| Brand | Creality |
|---|---|
| Configuration | Standard configuration |
| Optics | Two pairs of stereo lenses for different object sizes |
| Accuracy | Up to 0.02 mm at 60 mm, measured under laboratory conditions |
| Software | Creality Scan for Windows or macOS |
| Dimensions | 165 × 37 × 59 mm |
| Net weight | 380 g, as listed in the user manual |
| Technology | Handheld infrared structured-light 3D scanning |
| Power input | 5 V / 3 A |
| 3D resolution | 0.05–2 mm |
| Colour capture | Colour mapping with two white fill-light LEDs |
| Output formats | OBJ, STL and PLY |
| Alignment modes | Geometry, marker and texture |
| Data connection | USB-C · USB 3.0 / USB 2.0 |
| Working distance | 110–1,000 mm |
| Operating humidity | 0–90% RH |
| Minimum scan volume | 10 × 10 × 10 mm |
| Maximum scanning rate | 20 frames/s |
| Operating temperature | −10 to 40 °C |
| Maximum single capture area | 1,350 × 840 mm at 1,000 mm |
| Product family | 3D scanners |
Standard configuration
Not necessarily. Check coverage, repair the mesh where required, verify its scale and prepare it in your slicing software.
No. Scanning produces a surface model. Further modelling may be needed to create editable features or a part that meets a particular design requirement.
Use a computer that meets the current Creality Scan requirements for CR-Scan Otter. Check the supported operating system, processor, memory and graphics before ordering.
